Professional AC Charging Solutions

Advanced FES AC wallbox chargers with Type-1 and Type-2 interfaces, intelligent connectivity, and 10 comprehensive safety protections for reliable everyday charging.

7kW - 22kW
Power Range
Type-1 & Type-2
Universal Interfaces
IP65
Weather Protection
10 Protections
Safety Systems

FES AC Charger Series

Our professional-grade FES AC charging solutions deliver reliable, efficient power for residential, commercial, and fleet applications. Built to international standards with 10 comprehensive safety protections and intelligent connectivity options.

10 Safety Protections
Comprehensive protection suite
Smart Connectivity
WiFi, 4G, Bluetooth options
All-Weather Operation
-30°C to +50°C range
Certified Quality
FCC/ISO/TUV & CE approved
Internationally Certified
Quality & Safety Guaranteed

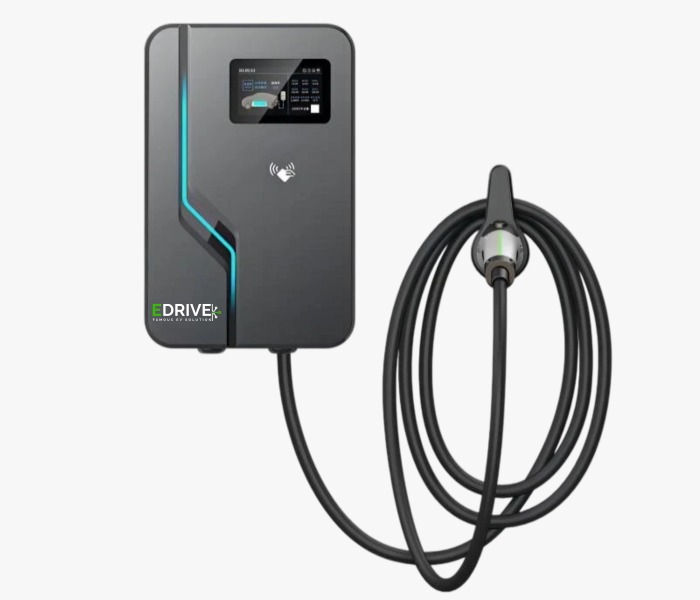

FES AC Charger
FES AC Charger Series

Professional wallbox design with advanced safety features

Type-1 & Type-2 Compact Design

Our FES AC Charger Models

Choose the perfect charging solution for your specific needs

FES-T23P-7KW-22KW
Type-2
FES-T23P Type-2 AC Charger
3-Phase Model
7.2kW - 22kW
Max Power
3-Phase
Commercial Grade
5m
Cable Length
IEC 61851-1
Standard
Technical Specifications
Input Voltage: 100~240V / 400V
Frequency: 50/60Hz
Current Range: 8A~32A
Interface: Type-2
Operating Temp: -30°C to +50°C
Dimensions: 385×284×80mm
Advanced Features
  • WiFi + IC Card connectivity
  • LED RGB & LCD Screen options
  • App-based current adjustment
  • OCPP 1.6j protocol support
  • 10 comprehensive safety protections
  • 12-month warranty
Weight: 4-6kg / 6.5-8.5kg
CE/ISO/TUV Certified
Get Quote
FES-PING-3.4KW-11KW
Type-1

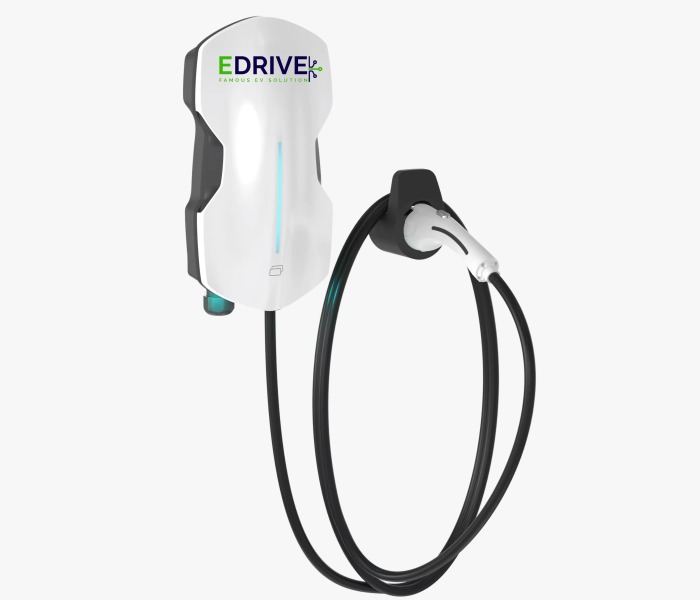

FES-PING Type-1 AC Charger
LED RGB Model
7kW - 11.5kW
Max Power
LED RGB
Status Indicators
7.5m
Cable Length
SAE J1772
Standard
Technical Specifications
Input Voltage: 100∼240VAC
Frequency: 50/60Hz
Current Range: 10A∼48A
Interface: Type-1
Operating Temp: -30°C to +50°C
Dimensions: 385×284×80mm
Core Features
  • Basic & WiFi + IC Card options
  • LED RGB status indicators
  • App-based current adjustment
  • OCPP 1.6j protocol support
  • 10 comprehensive safety protections
  • 12-month warranty
Weight: 6-7.5kg / 8-9.5kg
FCC/ISO/TUV Certified
Get Quote
FES-T1SP-3.4KW-11KW
Type-1
FES-T1SP Type-1 AC Charger
LCD Screen Model
7kW - 11.5kW
Max Power
4.3" LCD
Touch Screen
7.5m
Cable Length
SAE J1772
Standard
Technical Specifications
Input Voltage: 100∼240VAC
Frequency: 50/60Hz
Current Range: 10A∼48A
Interface: Type-1
Operating Temp: -30°C to +50°C
Dimensions: 385×284×80mm
Smart Features
  • WiFi + IC Card connectivity
  • 4.3" LCD touchscreen interface
  • App-based current adjustment
  • OCPP 1.6j protocol support
  • 10 comprehensive safety protections
  • 12-month warranty
Weight: 6-7.5kg / 8-9.5kg
FCC/ISO/TUV Certified
Get Quote
FES-T2SP-7KW
Type-2
FES-T2SP Type-2 AC Charger
Single Phase Model
7.2kW
Max Power
Single Phase
Residential
5m
Cable Length
IEC 61851-1
Standard
Technical Specifications
Input Voltage: 100~240VAC
Frequency: 50/60Hz
Current Range: 8A~32A
Interface: Type-2
Operating Temp: -30°C to +50°C
Dimensions: 385×284×80mm
Essential Features
  • WiFi + IC Card connectivity
  • LED RGB & LCD Screen options
  • App-based current adjustment
  • OCPP 1.6j protocol support
  • 10 comprehensive safety protections
  • 12-month warranty
Weight: 4-6kg / 6.5-8.5kg
CE/ISO/TUV Certified
Get Quote

10 Comprehensive Safety Protections

Multiple layers of protection ensure safe and reliable charging

Water-proof Protection

IP65-rated enclosure provides complete protection against water ingress and dust

Over-temperature Protection

Automatic shutdown when internal temperature exceeds safe operating limits

Over-voltage Protection

Protects against voltage spikes and surges that could damage the vehicle or charger

Under-voltage Protection

Prevents charging when input voltage drops below minimum safe levels

Over-current Protection

Automatic current limiting and circuit breaker protection against overload

Residual Current Protection

RCD protection detects earth leakage and prevents electrical shock hazards

Anti-pressure Protection

Prevents damage from excessive mechanical pressure on charging components

Anti-flame Protection

Fire-resistant materials and thermal cutoffs prevent ignition risks

PEN Fault Protection

Detects and responds to protective earth and neutral (PEN) conductor faults

CP Signal Protection

Control Pilot signal monitoring ensures proper vehicle-charger communication

International Safety Standards Compliance
IEC 61851-1
SAE J1772
CE Marking
IP65 Rating

Comprehensive Safety Protection

10 integrated safety systems ensure reliable and secure charging

10 Safety Protections
Over-current Protection
Prevents electrical overload
Over-voltage Protection
Surge protection system
Under-voltage Protection
Low voltage detection
Ground Fault Protection
Earth leakage detection
Temperature Protection
Thermal monitoring
Emergency Stop
Immediate shutdown
Advanced Protection Features
RCD Protection
AC 30mA, DC 6mA residual current detection for enhanced safety
Wide Operating Range
Operates reliably in temperatures from -30°C to +50°C
IP65 Weather Protection
Completely protected against dust and water ingress
International Standards
Complies with IEC 61851-1 and certified by CE/ISO/TUV

Smart Connectivity & Control

Multiple ways to control and monitor your charging sessions

App Version

Control charging through mobile app with real-time monitoring

  • Current adjustment
  • Scheduling setup
  • Usage statistics
  • Remote monitoring
RFID Card Version

Secure access control with RFID card authentication

  • Secure access
  • User management
  • Session tracking
  • Multi-user support
OCPP Version

Enterprise integration with OCPP 1.6j protocol support

  • Network management
  • Backend integration
  • Billing support
  • Fleet management
Connectivity Options
Option 1: Basic

Essential connectivity for local control

  • Bluetooth
  • Local app control
Option 2: Smart

Full connectivity with remote access

  • WiFi + 4G
  • IC Card support
  • Remote monitoring
Installation & Support
Professional Installation

Certified technician installation with warranty

12-Month Warranty

Comprehensive coverage and support

24/7 Technical Support

Expert assistance when you need it

Frequently Asked Questions

Common questions about our FES AC charging solutions

Type-1 (SAE J1772) is primarily used in North America and Japan, supporting single-phase power up to 11.5kW. Type-2 (IEC 62196) is the European standard supporting both single-phase (7.2kW) and three-phase power (up to 22kW). Our FES chargers are available in both standards with specific models for each type.

For residential: FES-T1SP or FES-PING (Type-1) up to 11.5kW, or FES-T2SP (Type-2) 7.2kW single-phase. For commercial: FES-T23P (Type-2) up to 22kW three-phase. Choose LCD models (T1SP, T23P) for advanced features or LED models (PING) for cost-effectiveness. All models include the same 10 safety protections.

All FES chargers support WiFi + IC Card connectivity for smart features including app-based current adjustment (10A-48A for Type-1, 8A-32A for Type-2), charging scheduling, and OCPP 1.6j protocol for network management. Basic models also available without smart connectivity.

Our FES chargers include: Water-proof (IP65), Over-temperature, Over-voltage, Under-voltage, Over-current, Residual current (RCD), Anti-pressure, Anti-flame, PEN fault, and CP signal protection. These comprehensive protections ensure safe operation in all conditions with automatic shutdown when hazards are detected.

Type-1 models (FES-T1SP/PING): 100-240VAC single-phase with dedicated 48A breaker for maximum power. Type-2 single-phase (FES-T2SP): 100-240VAC with 32A breaker. Type-2 three-phase (FES-T23P): 400VAC three-phase with appropriate breaker sizing. All require RCD protection per local electrical codes.

Type-1 FES chargers work with most North American and Japanese EVs (Nissan Leaf, Chevrolet Bolt, BMW i3, etc.). Type-2 FES chargers are compatible with European standard vehicles (Tesla Model 3/Y, VW ID series, BMW i4, Mercedes EQC, etc.). Adapters available for cross-compatibility when needed.

Our comprehensive 12-month warranty covers all manufacturing defects, component failures, and electrical issues for all FES charger models. This includes free replacement of defective units, technical support, remote diagnostics via smart connectivity, and on-site service if required. FCC/ISO/TUV certifications ensure quality standards.

Yes, all FES chargers are designed for outdoor operation with IP65 waterproof rating and operating temperature range of -30°C to +50°C. The robust enclosure protects against rain, snow, dust, and UV radiation. Over-temperature protection automatically manages thermal conditions during operation.
