FamousEV DC Charging Station
WZ2 30KW 40KW FLOOR MOUNTED
CHARGING METHODS
Multiple convenient ways to start your charging session

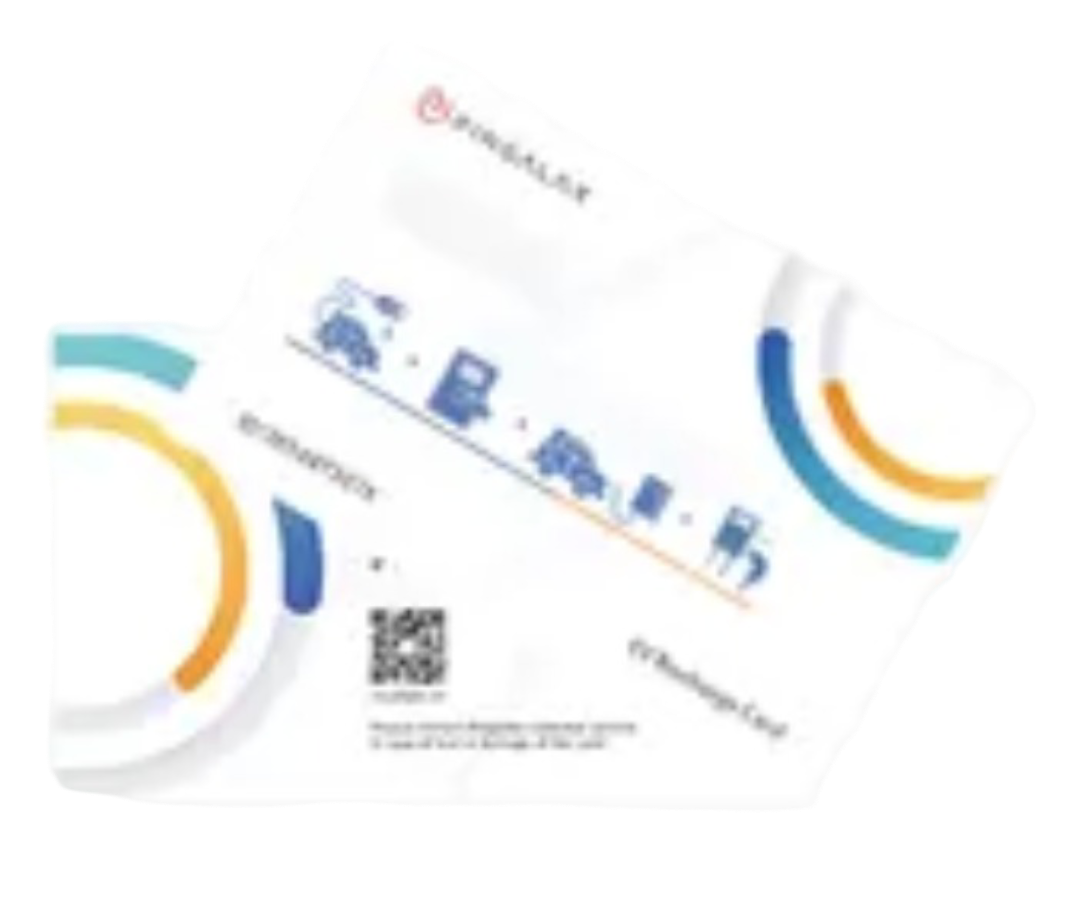

Swipe Card to Charge
Safe and private charging with RFID card authentication. Secure payment processing and user identification.

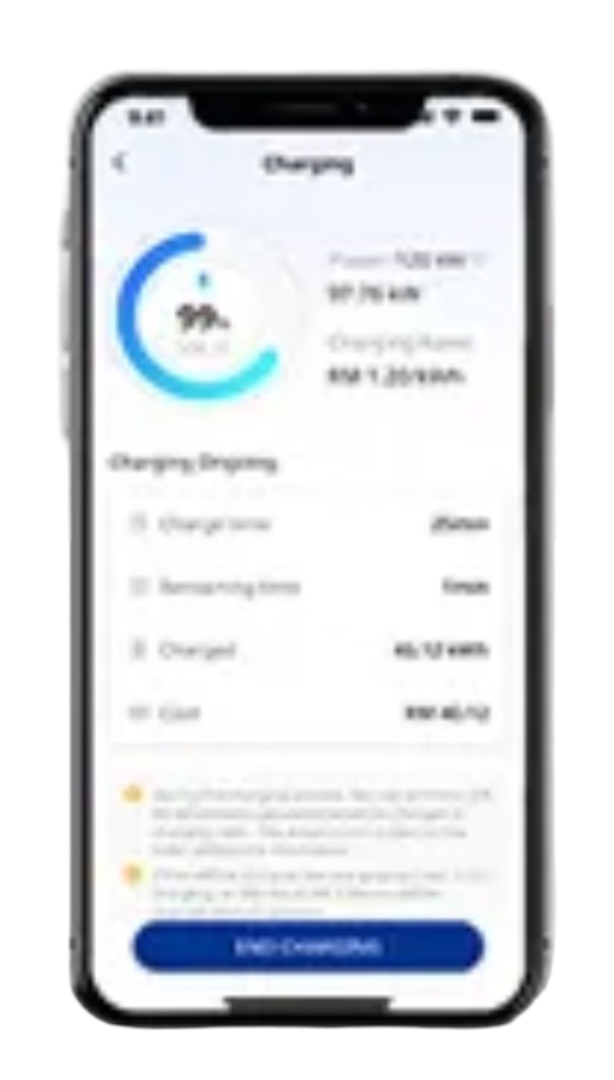

Scan to Charge
Easy and convenient QR code scanning through mobile app. Quick start without physical cards.

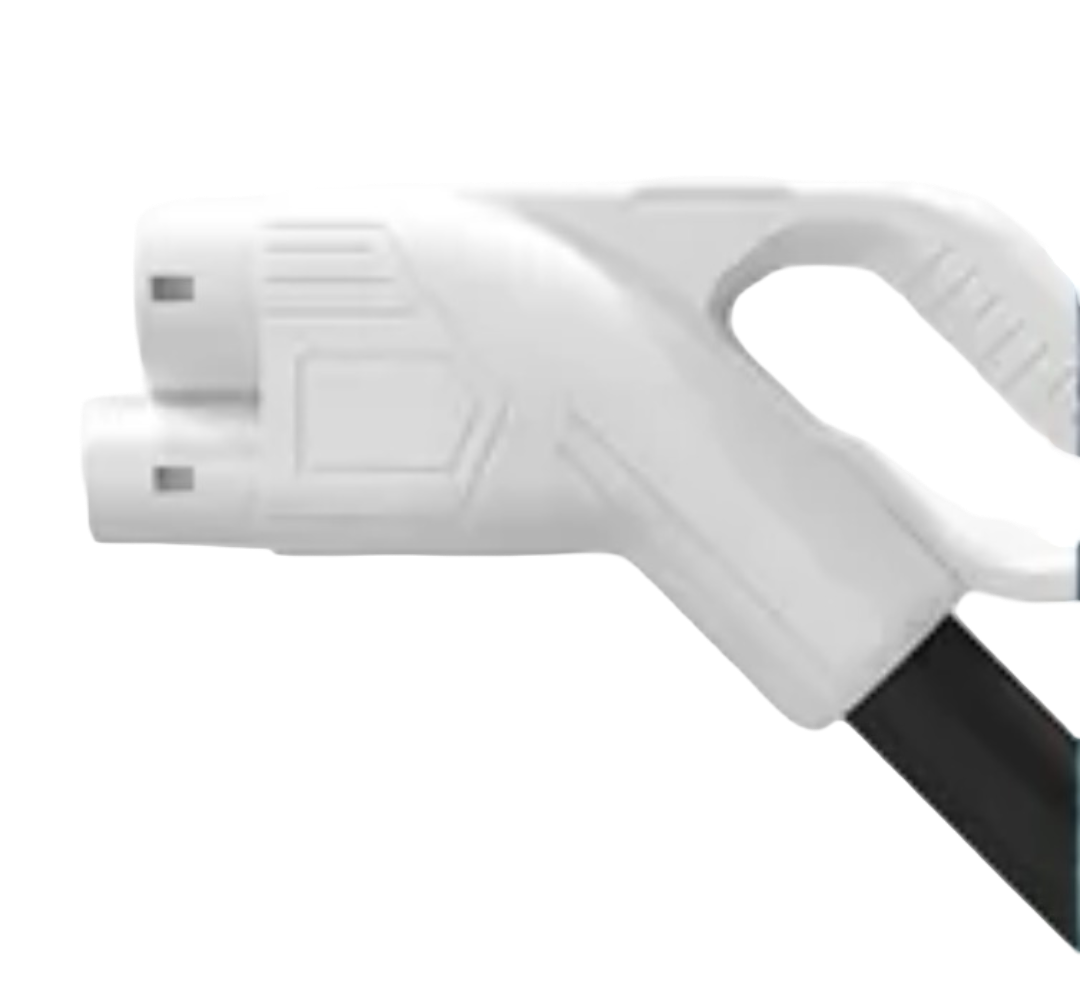

Charge with VIN Code
Smart vehicle identification through VIN code. Automated vehicle recognition and optimization.
INSTALLATION METHODS
Flexible installation options for different site requirements

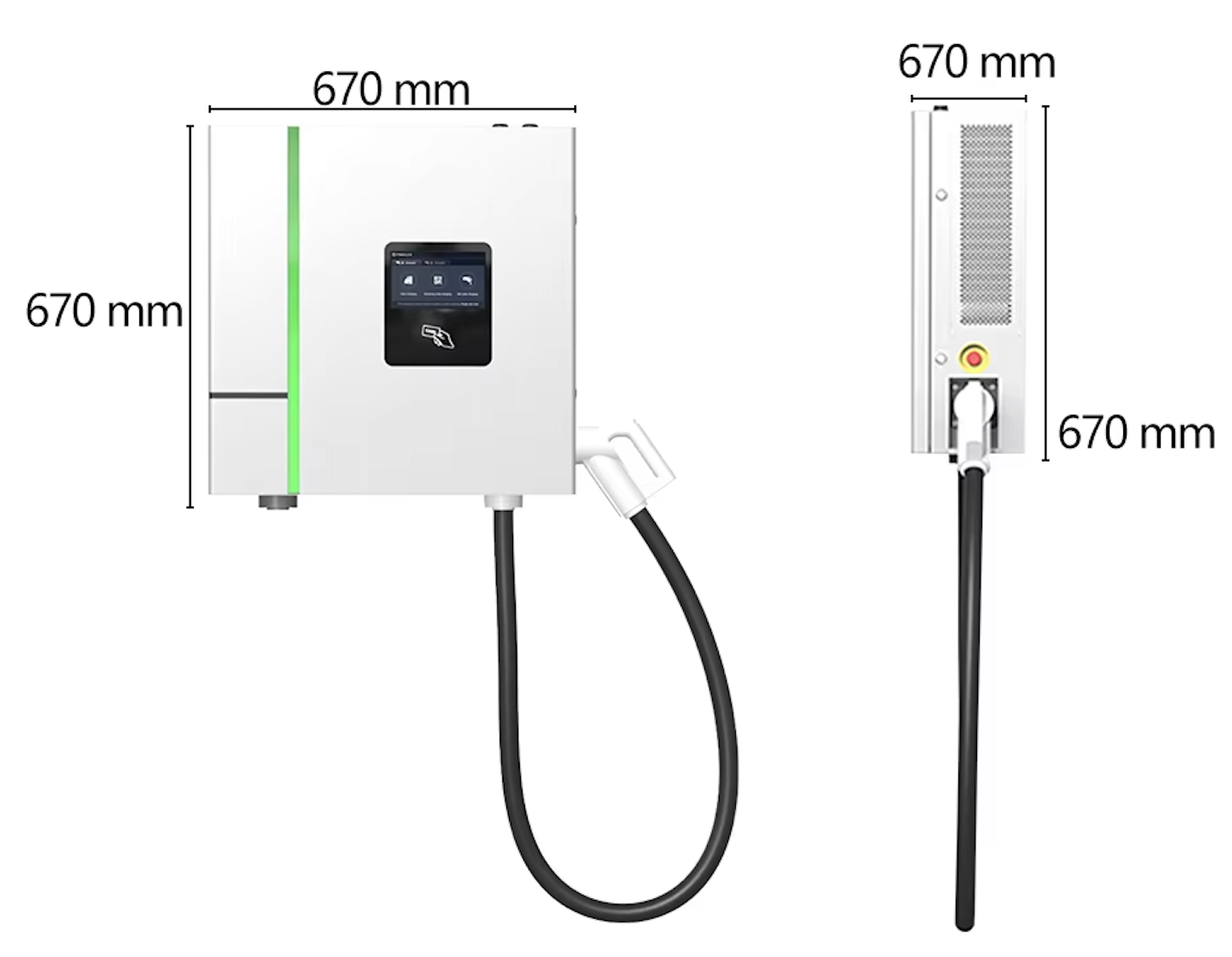

Wall-Mount
Space-efficient wall-mounted installation ideal for indoor parking areas, garages, and covered parking structures.
- Space-saving design
- Indoor/covered installations
- Easy maintenance access
- Cost-effective mounting

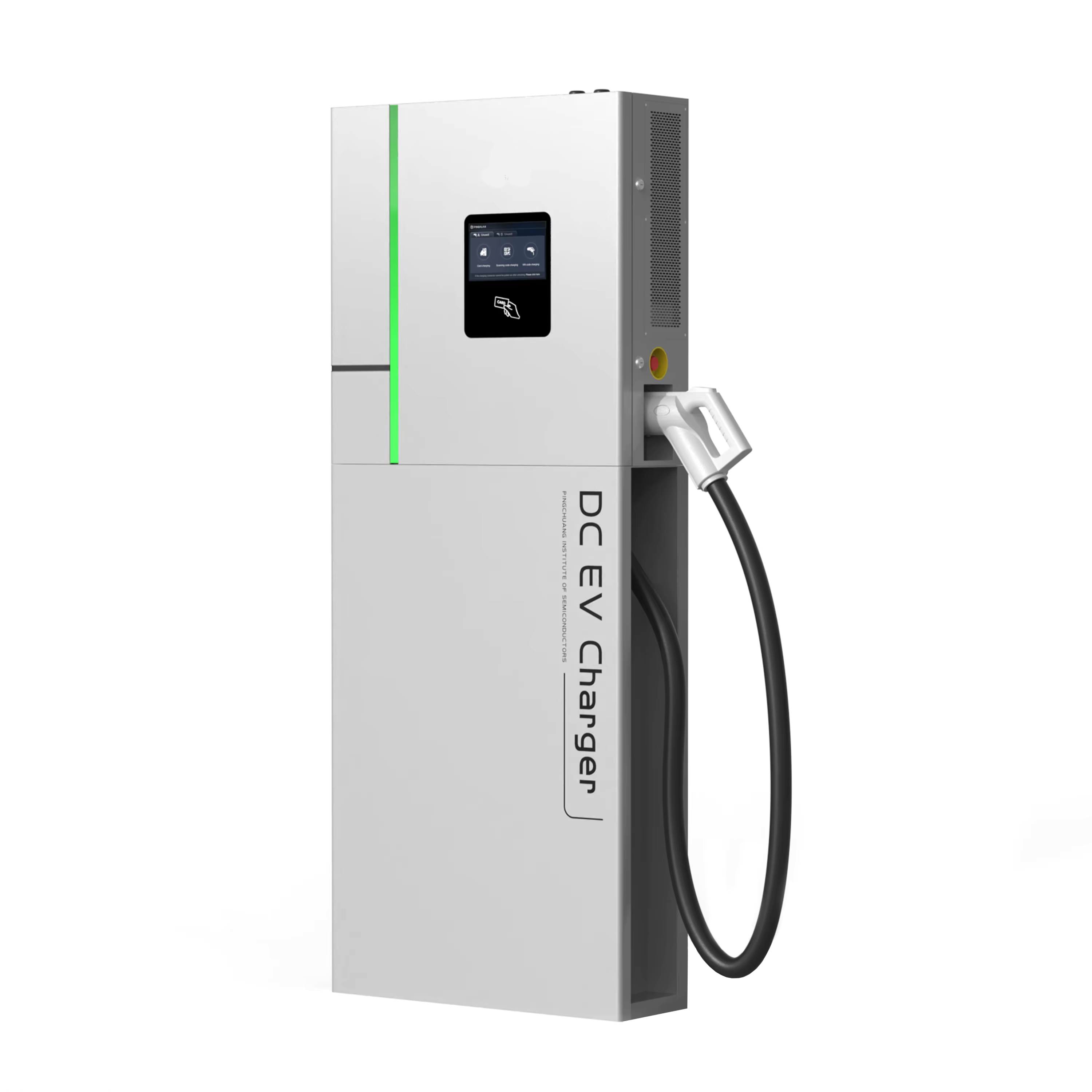

Column Type
Freestanding column installation for outdoor parking lots, public charging stations, and high-visibility locations.
- Outdoor weatherproof design
- High visibility placement
- Robust construction
- Public access friendly

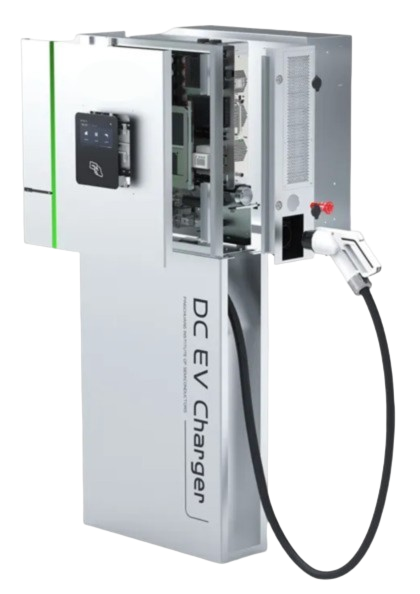

MULTI-STANDARD ADAPTATION, INTELLIGENT AND COMPREHENSIVE
Advanced compatibility and intelligent management systems
Compatible with Multiple Standards
Streamlined Data Transfer
Powerful Cloud Operating & Management
Tailored Service for OEM&ODM
Full-stack R&D enables tailored appearance, functions and solutions
VEHICLE LEVEL BMS MANAGEMENT SYSTEM
Provide 8 safety protections and emergency stop function
Emergency Stop
Immediate charging termination in emergency situations
Leakage Protection
Advanced ground fault detection and protection
Over-current Protection
Prevents damage from excessive current flow
Over-temperature Protection
Thermal monitoring and automatic shutdown
Lightning Protection
Surge protection against lightning strikes
IP54
Dust and water ingress protection rating
Over-voltage Protection
Protects against voltage spikes and surges
Short-circuit Protection
Immediate disconnect in case of short circuit

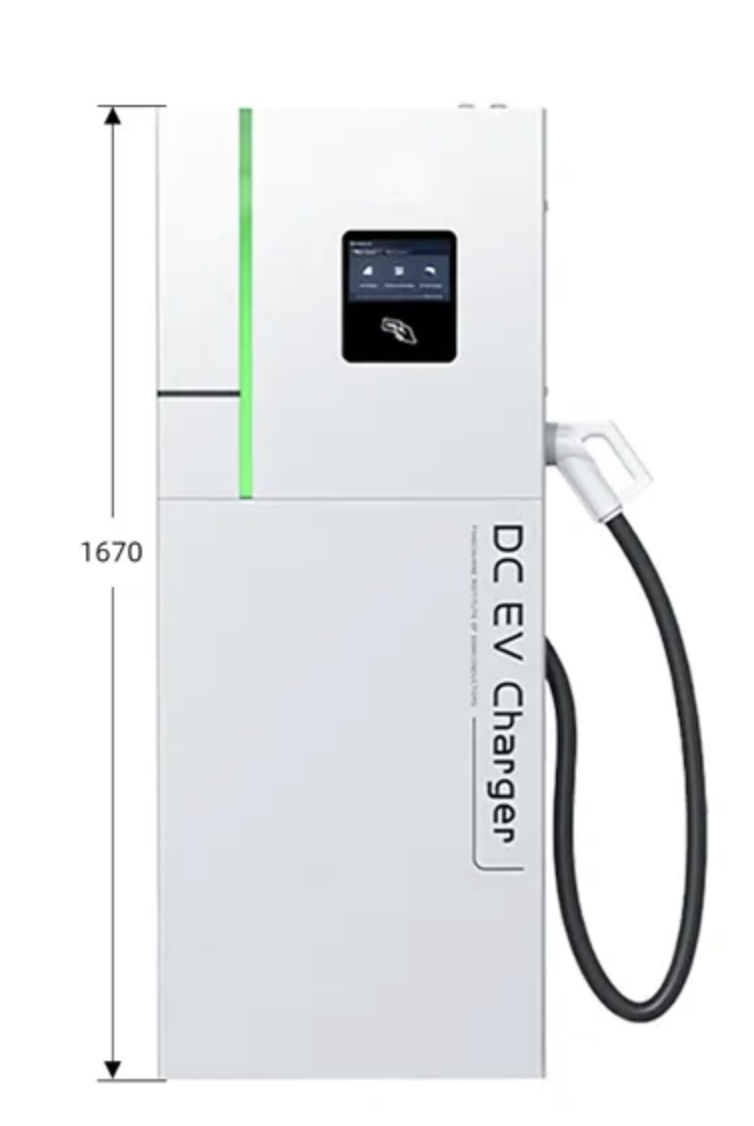

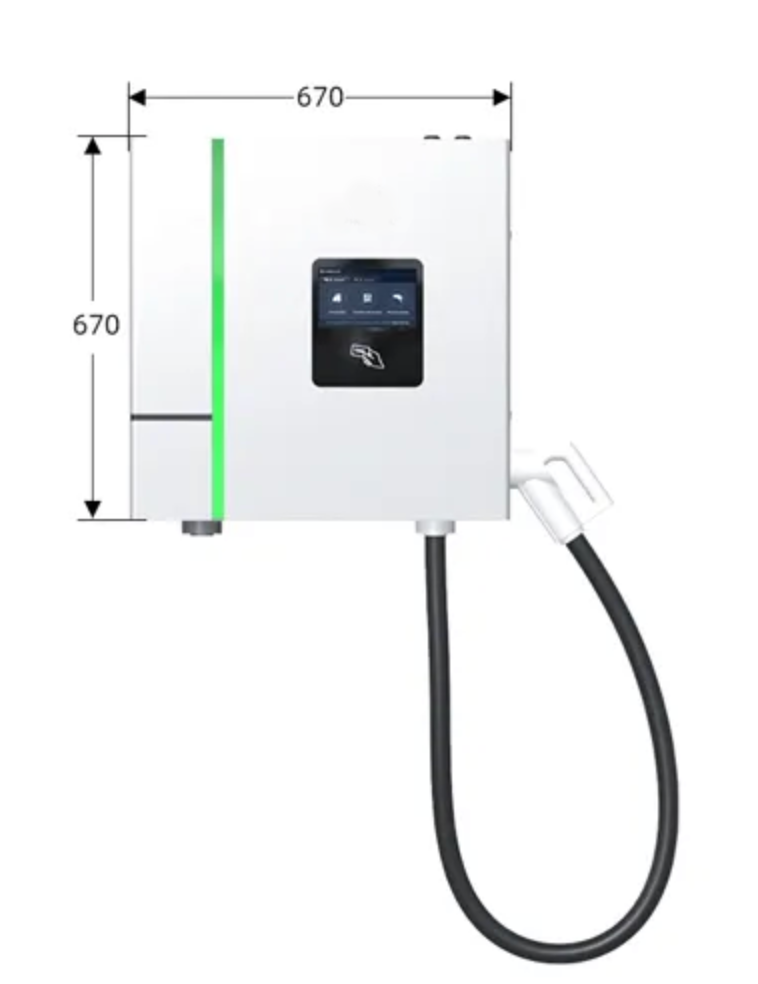

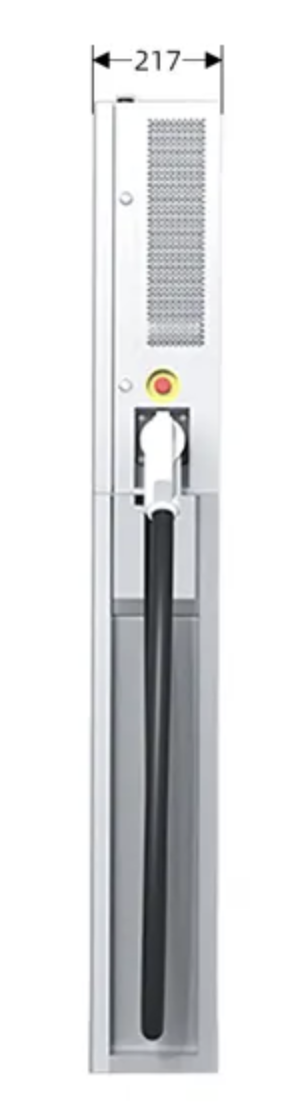

PRODUCT SIZE
Compact and efficient design specifications (All sizes are in mm)
Physical Specifications
Product Size
670mm×670mm×217mm
Net Weight
100 kG
Gross Weight
180 kG
TECHNICAL SPECIFICATIONS
FamousEV DC Charging Station WZ2 30KW 40KW detailed specifications
| Output Rating | 30kW - 40kW |
| Output Voltage | DC150-1000V |
| Output Current | 0-100A / 0-133A |
| Power Conversion Efficiency | >= 95% |
| Display | 7" LCD / 24" Advertising Screen |
| Communication | RJ45, 4G, WIFI |
| Communication Protocol | OCPP1.6J |
| BT/Wi-Fi | BLE4.2 / WIFI2.4G |
| RFID | ISO/IEC 14443A/B, Mifare |
| Other Functions | OTA (Over-The-Air Updates) |
